ESP-C3-13 ESP-C3-13-KIT development board ESP32

ESP-C3-13-Kit Esp32-C3 2M flash ESP-C3 ESP C3 13 13U ESP-C3-13U WiFi + Bluetooth 5.0 BLE5.0 2.4GHz Geliştirme kartı

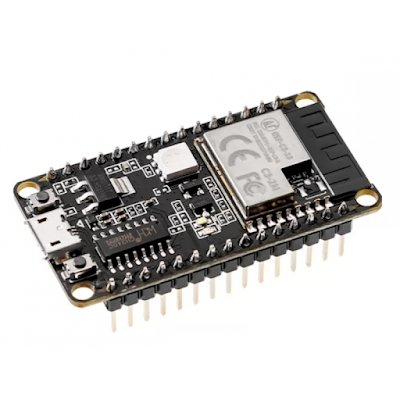

Model: ESP-C3-13-KIT development board

Package size: DIP-30 20.0x18.0x3.1mm (±0.2mm)

Antenna: On-board PCB antenna

Spectrum range: 2400 - 2483.5MHz

Operating temperature: -40℃ - 85℃

Storage environment: -40℃ - 125℃, <90% RH

Power Supply Requirement: 5V >500mA

Supported Interfaces: UART / GPIO / ADC / PWM / I2C / I2S

IO Ports: IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9, IO10, IO18, IO19, IO20, IO21

Serial port speed: 110 - 4608000 bps, default 115200 bps

Bluetooth: BLE 5.0

WIFI security: WEP / WPA-PSK / WPA2-PSK

SPI Flash: 4MB

Onboard LED: RGBWA (IO3 Red, IO4 Green, IO5 Blue), IO18 Amber, IO19 White

Device: ESP-C3-13

FCC ID: 2ATPO-ESP-C3-X C3-2M

Device Doc.: https://docs.ai-thinker.com/_media/esp32/docs/esp-c3-12f_specification.pdf

Arduino IDE Board Select: ESP32C3 Dev Module

Arduino IDE CPU Frequency: 160MHZ

Arduino IDE Flash Size: 2MB

Arduino IDE Partition Schema: 2MB

Arduino IDE MacOS Upload Speed: MacOS: 115200, Windows and Linux: 460800

  MacOS Boud Rate Error:

    18:15:51.714 -> ESP-ROM:esp32c3-api1-20210207

    18:15:51.714 -> Build:Feb  7 2021

    18:15:51.714 -> rst:0x1 (POWERON),boot:0xc (SPI_FAST_FLASH_BOOT)

    18:15:51.714 -> SPIWP:0xee

    18:15:51.714 -> mode:QIO, clock div:1

    18:15:51.714 -> load:0x3fcd5810,len:0x438

    18:15:51.714 -> ets_loader.c 78
